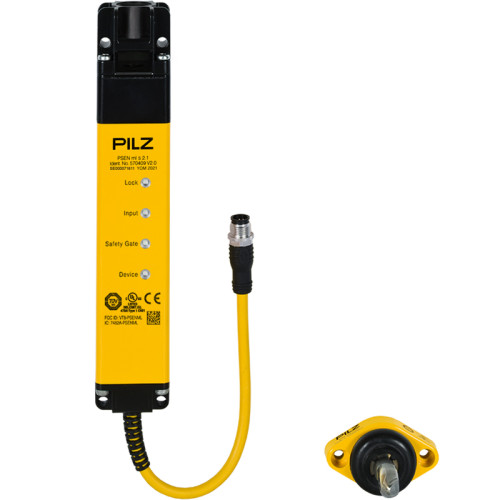

Safety gate system with mechanical guard locking series-connectablevers ion with power reset IP67

Manufacturer's No: PSEN ml s 2.1 unit     Manufacturer: Pilz
Safety gate system with mechanical guard locking series-connectablevers ion with power reset IP67

Availability Back Order

£343.62
  • Safety guard locking device PSENmlock
  • Fully coded with safety switch and actuator
  • Guard locking feature with power reset
  • 12-pin M12 male connector
  • 0.23 meter cable included
  • Suitable for series connection

Accessories



Product

Manufacturer Material ID -
PSEN ml s 2.1 unit
Net Weight -
1.45kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
UNSPSC -
41111926

Technical Specification

Housing material -
Metal
Suitable for safety functions -
With status indication -
Type of switching contact -
Other
Type of interface for safety communication -
None
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Construction type housing -
Other
Number of safety auxiliary contacts -
5
Interface type -
None
Rated control supply voltage magnet drive at DC -
24 Volt
With escape unlocking -
Clamping force -
7500 Newton
Number of contacts as normally closed contact -
3
Number of contacts as normally open contact -
2
Type of guard locking -
Bistable
Thumbnail of product picture -
Medien_800/Pictures_800/570408_800.jpg
Ambient temperature during operating -
0 Degrees celsius
Degree of protection (IP rating) -
IP67
Height of sensor -
217.2 Millimetre
Length of sensor -
40 Millimetre
Width sensor -
40 Millimetre
