2201-1201

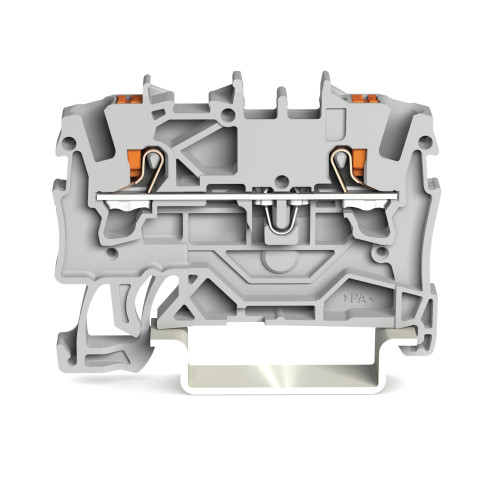

2-conductor through terminal block; with push-button; 1.5 mm²; with test port; side and center marking; for DIN-rail 35 x 15

Manufacturer's No: 2201-1201     Manufacturer: WAGO
2-conductor through terminal block; with push-button; 1.5 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,50 mm²; gray

Availability In Stock

Once added to the cart, you can split this pack for a charge of £16.00

POA
List Price £0.66
  • Terminal block with push-button for easy connection
  • Accommodates 2 conductors of 1.5 mm² each
  • Features a test port for convenient testing
  • Suitable for DIN-rail sizes 35 x 15 and 35 x 7.5
  • Utilizes Push-in CAGE CLAMP® technology
  • Color: gray

Accessories

Push-In Type Jumper Bar, Insulated 4-Way Light Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2001-404
Price £0.5925
List Price £0.79
In Stock

Push-In Type Jumper Bar, Insulated 5-Way Light Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2001-405
Price £0.7875
List Price £1.05
In Stock

Push-In Type Jumper Bar, Insulated 6-Way Light Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2001-406
Price £0.99
List Price £1.32
Back Order

Push-In Type Jumper Bar, Insulated 7-Way Light Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2001-407
Price £1.185
List Price £1.58
Back Order

Push-In Type Jumper Bar, Insulated 8-Way Light Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2001-408
Price £1.3875
List Price £1.85
In Stock

9-way push-in type insulated jumper bar, 18A

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2001-409
Price £1.59
List Price £2.12
Back Order

Push-In Type Jumper Bar, Insulated 10-Way Light Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2001-410
Price £1.7925
List Price £2.39
In Stock

Push-In Type Jumper Bar, Insulated From 1 To 3 Light Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2001-433
Price £0.36
List Price £0.48
In Stock

Push-In Type Jumper Bar, Insulated From 1 To 4 Light Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2001-434
Price £0.5925
List Price £0.79
Back Order

1 - 5 push-in type insulated jumper bar, 18A

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2001-435
Price £0.825
List Price £1.10
Back Order

1 - 6 push-in type insulated jumper bar, 18A

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2001-436
Price £1.05
List Price £1.40
Back Order

1 - 7 push-in type insulated jumper bar, 18A

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2001-437
Price £1.305
List Price £1.74
Back Order

1 - 8 push-in type insulated jumper bar, 18A

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2001-438
Price £1.5375
List Price £2.05
Back Order

1 - 9 push-in type insulated jumper bar, 18A

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2001-439
Price £1.74
List Price £2.32
Back Order

Push-In Type Jumper Bar, Insulated From 1 To 10 Light Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2001-440
Price £1.785
List Price £2.38
Back Order

Separator Plate, 2 mm Thick Oversized Orange

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2002-1294
Price £0.27
List Price £0.36
Back Order
Price £0.09
Back Order
Price £0.09
Back Order
Price £0.09
Back Order

Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip; light gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2001-171
Price £0.0825
List Price £0.11
Back Order

Separator for Ex e/Ex i applications; 3 mm thick; 90 mm wide; orange

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 209-190
Price £0.79
Back Order

Separator for Ex e/Ex i applications; 3 mm thick; 120 mm wide; orange

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 209-191
Price £1.09
Back Order

Star point jumper insulated 3-way (1-3-5) light gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2001-405/011-000
Price £0.825
List Price £1.10
Back Order

Delta jumper, insulated, 1-2 3-4 5-6, light gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2001-406/020-000
Price £1.05
List Price £1.40
Back Order

Spacer module; modular; e.g., for bridging commoned terminal blocks; gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2001-549
Price £0.2475
List Price £0.33
Back Order

Push-in type wire jumper; insulated; 60 mm long; black

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2009-412
Price £2.7075
List Price £3.61
Back Order

Push-in type wire jumper; 1.5 mm²; insulated; 110 mm long; black

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2009-414
Price £2.7525
List Price £3.67
Back Order

Push-in type wire jumper; 1.5 mm²; insulated; 250 mm long; black

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2009-416
Price £2.805
List Price £3.74
Back Order

Push-in type wire jumper; 1.5 mm²; insulated; 110 mm long; black

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2009-414/000-005
Price POA
Back Order

Push-in type wire jumper; insulated; 110 mm long; black

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2009-414/000-006
Price POA
Back Order

Cover carrier; Type 3

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 709-169
Price £1.77
Back Order

WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; blue

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 793-4501/000-006
Price POA
Back Order

WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 793-4501/000-007
Price POA
Back Order

WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; green

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 793-4501/000-023
Price POA
Back Order


Product

Manufacturer Material ID -
2201-1201
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
UNSPSC -
39121410

Technical Specification

Length -
48.5 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
4.2 Millimetre
Height at lowest possible mounting height -
32.9 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.75 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section multi-wired -
0.25 Square millimetre
Connectable conductor cross section solid-core -
0.5 Square millimetre
Depth -
32.9 Millimetre
Explosion-tested version 'Ex e' -
Height -
48.5 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
18 Ampere
Rated voltage -
800 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
4.2 Millimetre
