SIMATIC EV Charging System
Charging the evolution of eMobility.
It is essential to understand that building and installing EV charger system goes beyond providing a charging point for electric vehicles. To maximise uptime and minimise losses, you need a holistic approach to the entire electrical infrastructure.
Overview
SIMATIC: The holistic approach for a successful EV charging infrastructure
Using Siemens modular approach, we begin with the transformer substation connection to the electrical grid. The load management system helps you stay within contract limitations with your power supplier and ensures that you deliver maximum power to your customers during the charging process. The optional microgrid application enables you to integrate on-site batteries or photovoltaic generation. The integrated asset management system helps reduce service costs and ensures seamless operation. Additionally, it maximises the lifespan of your EV charging infrastructure.
Systems Architecture Example
Components of EV Charging system
Control Panel Example AC / DC
In partnership with Siemens, we support you with components from SIRIUS and SENTRON for your charging infrastructure and applications e.g. Wallbox, AC Charger and DC Charger. We offer different devices for protection, switching, measuring and safety.
Please contact us to discuss your requirements.

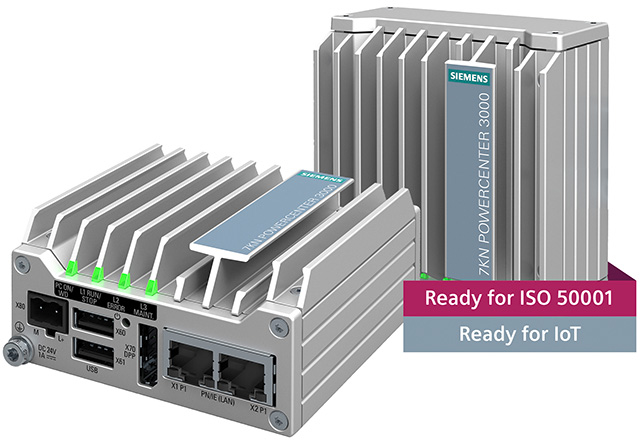

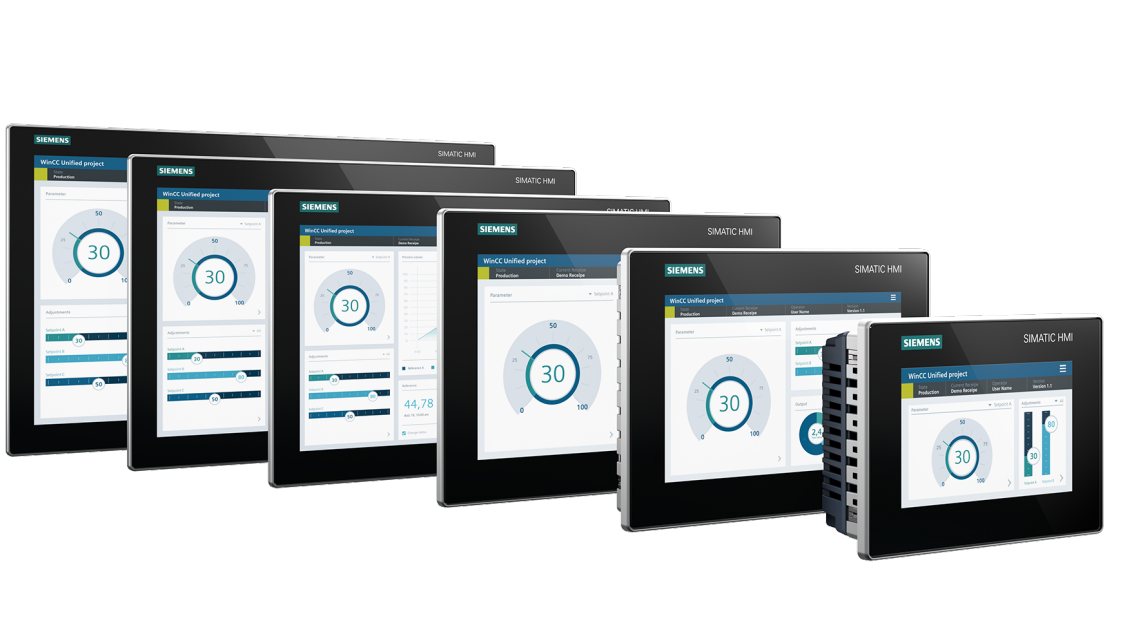

SIMATIC EV Charging key components

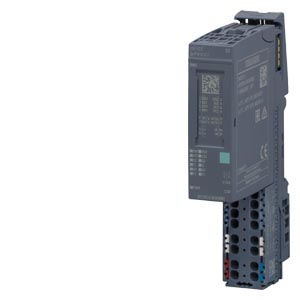

ET 200SP TM ECC 2xPWM ST
The essential module for your charging systems
The ET 200SP I/O system offers an ideal basis for meeting the technological requirements involved in the conductive charging of electric vehicles not only in industrial automation, but also the field of electromobility. Communication between the electric vehicle and the CPU installed in the charger infrastructure plays a major role here. The ET 200SP TM ECC 2xPWM ST hereby enables communication in accordance with charging mode 3 for two charging processes running independently of one another as defined in the IEC 61851 standard. It can be used within an ET 200SP station, both in centralised and distributed configurations, whereby the slots can be freely selected.
In addition to communication, the technology module takes over control of the connector lock for charging sockets type 2 in accordance with IEC 62196 and of the contactor for switching the charging capacity.
For demanding charging infrastructure solutions, the tasks of load management (Energy Meter), back-end and billing options (Open Controller), identification (RF1060R), illumination (e.g. TM Pulse) and back-end connection (PC) can be implemented within the SIMATIC ET 200SP in combination with additional modules and a corresponding CPU (e.g. SIMATIC ET 200SP Open Controller).
ET 200SP TM ECC 2xPWM ST
Key Features
- Detecting the charging cable and its permitted current carrying capacity
- Transferring the maximum charging current from the charging station to the electric vehicle
- Evaluating the status signals from the electric vehicle:
- Ready for charging
- Charging
- Charging with ventilation
- Control and status query of the load output
- Control and status query of the connector lock by means of solenoid or motorised drive
Charging infrastructure solutions based on the new SIMATIC ET 200SP TM ECC offer the following advantages:
- Space savings in the control cabinet compared to conventional solutions
- Safe control of the charging processes
- Modular expansion options directly at a CPU or as distributed I/O modules
Benefits at a glance
- Reduced downtimes via intelligent load management
and load current control possibilities - RFID connection via communication module (RS485 / RS232)
- Automatic detection of the cable’s current carrying
capacity&secure shutdown on error detection - Full flexibility and adaptability for individual requirements
and infrastructures - Direct backend connection
EV Charging solution with Standard Components
SIMATIC ET 200SP TM ECC charge controllers are designed to serve various concepts: From Single EV charging poles to multi-point charging stations (AC and DC)
Single EV Charging poles
For more information about our Single EV Charging solution, please speak with our team.
Charging scenarios
- Gas station upgrades
- e-bus depot
- Highway transit charging
- Logistics depot parking
- Employee parking …and more
Features
- Programmable controllers with open interfaces according international standards
- Charge any Type 1 or Type 2 compatible vehicle up to three phases and 11/22 kW (max. 43 kW)
- Charge any CCS2, CHAdeMO or Tesla SuC (via CCS adapter) compatible vehicle with up to 800 V for cars and more for buses and trucks (depending on converter performance)
- Fail-safe functionality included
- Built-in communications including secure a VPN connection
- OCPP on-board
- Over-the-Air (OTA) firmware updates via Siemens Automation Tool (SAT)
Multi-point EV Charging stations
This multi-charging system is build to be able to expand it over the time to deal with the increasing number of electrical vehicles. To ensure this property both hardware and software should be focused on modularity.
The Siemens hardware offers you to build up a modular charging system by adding some charging specific hardware like the charging plug.
The ET 200SP TM ECC 2xPWM ST is the essential module for your Siemens charging system. This module builds up the communication to the car and manage the behaviour of the lock among other things.
For more information about our Multi-point EV Charging solution, please speak with our team.
Charging scenarios
- parking garages,
- municipal or supermarket parking areas,
- larger employee parking areas,
- gas station,
- company fleet charging,
- e-bus depots, logistics depot parking, and more – to load many cars at the same time
Features
- Programmable controllers with open interfaces according international standards
- Highly flexible, customisable and solution with minimal space required for AC sockets (DC plugs with certain limitations)
- AC charging according IEC 61851-1 Mode 3: Charge any Type 1 or Type 2 compatible vehicle up to 3 phases and 11/22 kW (max. 43 kW)
- Up to 30 m distance between central control panel and AC charging points
- DC charging according IEC 61851-1 Mode 4/ DIN SPEC 70121 – Charge any CCS2, CHAdeMO or Tesla SuC (via CCS adapter) compatible vehicle with up to 800 V for cars and more for buses and trucks (depending on converter performance)
- Up to 10 m distance between central control panel and the DC charging plugs
- Fail-safe functionality optionally included for safe switching of high power
- Optional load management for intelligent power allocation across charging vehicles (with SIMATIC Energy Suite)
- Calibratable energy measurement possible (with selected back-end providers and suppliers of certified energy meters, e.g. EDL40+)
- Built-in communications including secure a VPN connection (over 3G, LAN, WiFi)
- OCPP onboard: basis for the connection of OCPP speaking backend systems (version 1.6)
- Over-the-Air (OTA) firmware updates via Siemens Automation Tool (SAT) from a central backend speaking OCPP (Open Charge Point Protocol)
- Built-in RFID connection for driver identification
The Siemens Advantage
Why you should rely on Siemens Technology in your charging stations
We provide OEMs and system integrators with charging solution for electric vehicles including modern, programmable SIMATIC controllers, electrical components and application examples for AC and DC charging stations.
With only three charge control modules you will be able to charge with the different connector types according to latest international standards.
It is possible to realise charging stations of any size from single pillars to multi point charging with many charging sockets or plugs.
All automation task run on one single and performant device what eliminates redundant and risky interfaces.
The controller platform is ready for OCPP communication, Load Management and combinable with calibratable meter from 3rd-party vendor
To ease the engineering we offer the free-of-charge application examples.
SIRIUS and SENTRON ensure protection of the user and the car. Reliability is key in this context – especially as charging infrastructure is exposed to all kinds of weather conditions, electrical equipment needs to be robust and of high quality.
Siemens provides a strong solution expertise for e-mobility charging applications. We understand your applications and offer support from the planning phase to realisation and services.
We drive forward standardisation and integrate the latest standards in our products, which in turn benefits our customers.
For your specific requirements, talk to us.
To see how we can help with your systems or if you have any enquiry, please get in touch – we’ll be pleased to help. Send us an email at support@parmley-graham.co.uk or fill the form below.
Tutorials
TIA Portal Tutorials for SIMATIC ECC
The eCar Charging Suite is an application example for the Siemens Engineering Framework TIA-Portal with which planners, constructors and producers of charging systems can realise individual charging solutions with advanced feature requirements. In the following videos, the set-up of the eCar Charging Suite und several other topics will be explained.
Part 1: Introduction
In the following videos, we are taking a closer look at how to set up the eCar Charging Suite and some other related topics. Additionally, we will extend the application by further functions.
Part 2: Simulate charge process simulation
Simulation of the charging processes – In this video, we will run through the complete loading cycle with the simulation. We will help you to start your project and to understand the simulation better.
Part 3: OCPP Gateway
Backend connection via OCPP – In this video, we will extend our already set simulation from the last video, with an OCPP gateway and connect to a backend.
Part 4: Add more connectors
Add more connectors – In this video, we will show you how to extend your application and add new charging points.
Part 5: Load management
In this video, we will deep dive into the details about how the load management works, i.e. how the load management decides and also explain the MinCurrentDetection.
Part 6: Extend application with new functions
Extend application with new features – This video will help you to integrate own functions into the TIA project.
